MBX8T Eco








MBX8TECO Features:
♦ 3mm A-7075 hard anodized chassis
♦ HT Differentials throughout and Lightweight 46T spur gear
♦ Straight cut conical and ring differential gears
♦ Durable box-shaped suspension arms and arm stiffeners.
♦ Front/Rear 16mm hard-anodized threaded shocks with 3.5mm shock shafts
♦ Stylish, pre-cut cab forward body
Differentials Oils:

Front - 10,000 wt Oil (B0317)
Rear - 7,000 wt Oil (B0323)
Center - 10,000 wt Oil (B0317)

Shocks, Springs and Sway Bars:

Front - 600 wt Oil (B0326) / φ1.5 L75/7.5T Spring (E0574) / φ1.3 6H Piston (E2569) / 2.4mm ARB
Rear - 600 wt Oil (B0326) / φ1.5 L86/7.75T Spring (E0578) / φ1.3 6H Piston (E2569) / 2.7mm ARB

Download:

♦  Parts list

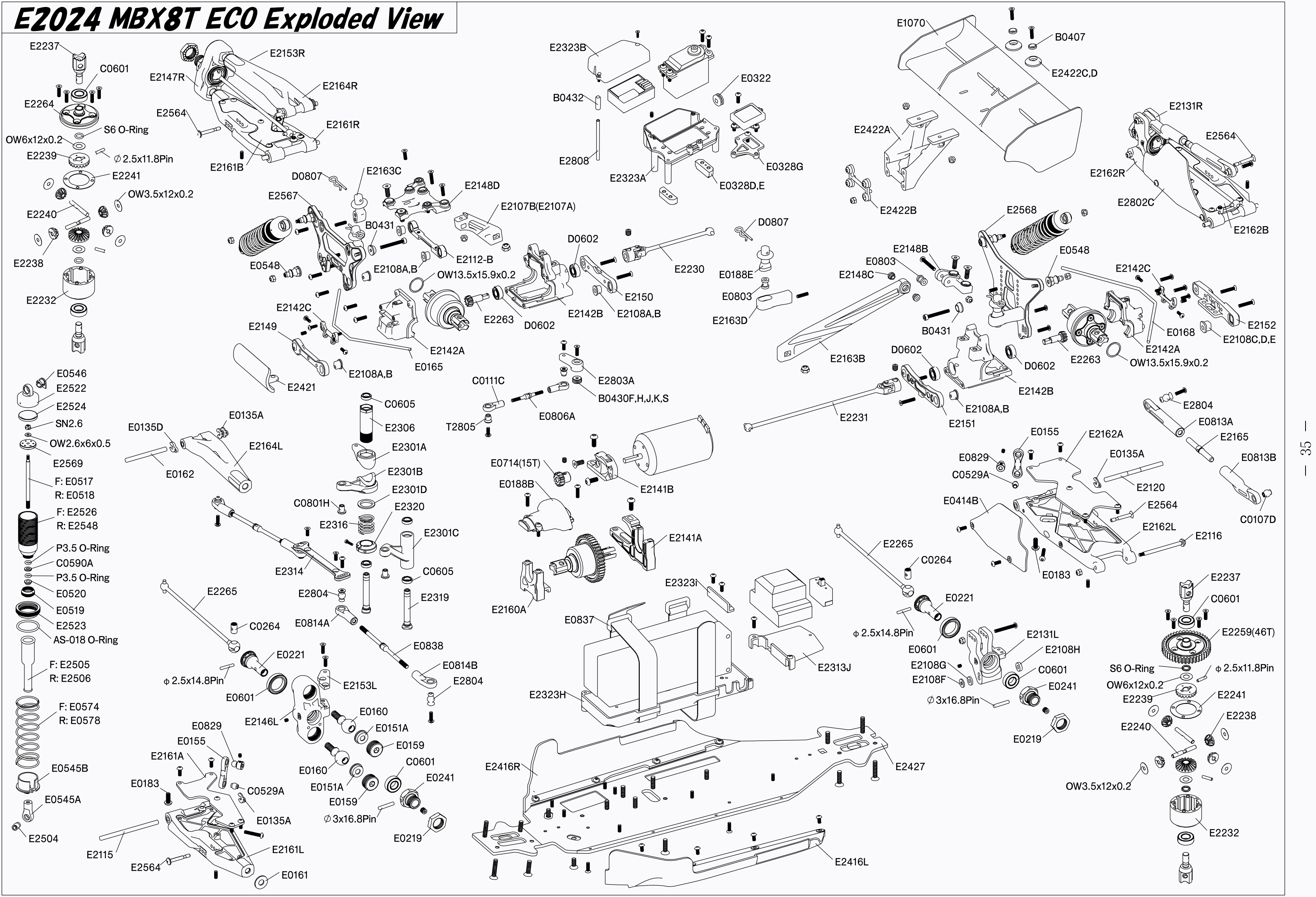

♦ Exploded view
 Setup sheet

♦ Instruction manual
♦ Additional manual

♦ Option parts

Other necessary equipment:
2ch radio set for RC car (Transmitter, Receiver, Servo)/Batteries for Transmitter/Motor/ESC (Electric Speed Controller)/Batteries for RC Car/Charger/Body paint tools/Ties & Wheels
*The contents are subject to change without notice due to product improvements and specification changes.
*Final production version of product may and will differ from appearance of product shown on this web page.
